Section C - Clutch

.

.

Clutch diagram

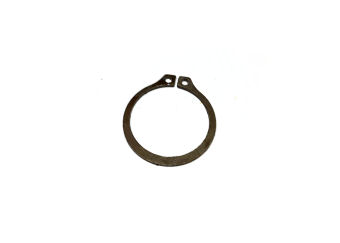

CIRCLIP CLTCH CHAIN WHEEL

CIRCLIP CLTCH CHAIN WHEEL


27806
In stock
Exploded View No. 2
Price: 1.32 Inc. VAT. (1.10 Exc. VAT at 20%)

CHAINWHEEL/BASKET ASSY 43T (250)

CHAINWHEEL/BASKET ASSY 43T (250)


40909
In stock
Exploded View No. 3,4,5,6
Price: 162.00 Inc. VAT. (135.00 Exc. VAT at 20%)

CHAINWHEEL/BASKET ASSY 40T (370/410)

CHAINWHEEL/BASKET ASSY 40T (370/410)


0710009
In stock
Exploded View No. 3A,4,5,6
Price: 162.00 Inc. VAT. (135.00 Exc. VAT at 20%)

CHAINWHEEL ONLY 40T

CHAINWHEEL ONLY 40T


0710009A
In stock
Exploded View No. 3A
Price: 70.80 Inc. VAT. (59.00 Exc. VAT at 20%)

CHAINWHEEL ONLY 43T

CHAINWHEEL ONLY 43T


40909A
In stock
Exploded View No. 3
Price: 70.80 Inc. VAT. (59.00 Exc. VAT at 20%)

BEARING CLTCH CNTR (standard quality)

BEARING CLTCH CNTR (standard quality)


27831
In stock
Exploded View No. 4
Price: 28.80 Inc. VAT. (24.00 Exc. VAT at 20%)

HOUSING, CLUTCH Y4,Y5,410

HOUSING, CLUTCH Y4,Y5,410


40739
In stock
Exploded View No. 5
Price: 62.94 Inc. VAT. (52.45 Exc. VAT at 20%)

RIVET, CLUCH

RIVET, CLUCH


27845
In stock
Exploded View No. 6
Price: 0.58 Inc. VAT. (0.48 Exc. VAT at 20%)

CLUTCH CENTRE BEARING (top quality)

CLUTCH CENTRE BEARING (top quality)


27831-HQ
In stock
Exploded View No. 4
Price: 51.30 Inc. VAT. (42.75 Exc. VAT at 20%)

CENTRE CLTCH

CENTRE CLTCH


40901
In stock
Exploded View No. 7
Price: 69.60 Inc. VAT. (58.00 Exc. VAT at 20%)

WASHER, THRUST

WASHER, THRUST


27598
In stock
Exploded View No. 8
Price: 3.54 Inc. VAT. (2.95 Exc. VAT at 20%)

CIRCLIP

CIRCLIP


26894
In stock
Exploded View No. 9
Price: 0.83 Inc. VAT. (0.69 Exc. VAT at 20%)

E- circlip

E- circlip


0710190
In stock
Exploded View No. 9a
Price: 1.80 Inc. VAT. (1.50 Exc. VAT at 20%)

FRICTION CLUTCH PLATE (each)

FRICTION CLUTCH PLATE (each)


40906
In stock
Exploded View No. 10
Price: 24.61 Inc. VAT. (20.51 Exc. VAT at 20%)

INTERMEDIATE CLUTCH PLATE (each)

INTERMEDIATE CLUTCH PLATE (each)


40904
In stock
Exploded View No. 11
Price: 15.00 Inc. VAT. (12.50 Exc. VAT at 20%)

LATE TYPE CLUTCH PRESSURE PLATE

LATE TYPE CLUTCH PRESSURE PLATE


0710132
In stock
Exploded View No. 12
Price: 23.63 Inc. VAT. (19.69 Exc. VAT at 20%)

CIRCLIP, OPERATING PIN

CIRCLIP, OPERATING PIN


27808
In stock
Exploded View No. 13
Price: 0.50 Inc. VAT. (0.42 Exc. VAT at 20%)

CLUTCH OPERATING PIN (EARLY TYPE)

CLUTCH OPERATING PIN (EARLY TYPE)


27373
In stock
Exploded View No. 14a
Price: 16.80 Inc. VAT. (14.00 Exc. VAT at 20%)

CLUTCH OPERATING PIN

CLUTCH OPERATING PIN


0710134
In stock
Exploded View No. 14b
Price: 21.60 Inc. VAT. (18.00 Exc. VAT at 20%)

OPERATING PIN KIT (Stormer only)

OPERATING PIN KIT (Stormer only)


OPK
In stock
Exploded View No. 14c (kit)
Price: 35.40 Inc. VAT. (29.50 Exc. VAT at 20%)

THRUST RACE WASHER

THRUST RACE WASHER


27179
In stock
Exploded View No. 15
Price: 3.60 Inc. VAT. (3.00 Exc. VAT at 20%)

THRUST BEARING, CLTCH OPP

THRUST BEARING, CLTCH OPP


27180
In stock
Exploded View No. 16
Price: 10.85 Inc. VAT. (9.04 Exc. VAT at 20%)

BEARING ADAPTOR

BEARING ADAPTOR


27989
In stock
Exploded View No. 17a
Price: 21.72 Inc. VAT. (18.10 Exc. VAT at 20%)

BEARING ADAPTOR  (FB TYPE)

BEARING ADAPTOR (FB TYPE)


27989A
In stock
Exploded View No. 17b Fluff Brown MOD
Price: 21.72 Inc. VAT. (18.10 Exc. VAT at 20%)

UPRATED DIAPHRAGM SPRING KIT

UPRATED DIAPHRAGM SPRING KIT


USK
In stock
Exploded View No. 18 (kit)
Price: 101.40 Inc. VAT. (84.50 Exc. VAT at 20%)

CIRCLIP, DIA SPRNG RETAINING

CIRCLIP, DIA SPRNG RETAINING


28335
In stock
Exploded View No. 19
Price: 10.08 Inc. VAT. (8.40 Exc. VAT at 20%)

OUTER SCROLL ASSY

OUTER SCROLL ASSY


31053
In stock
Exploded View No. 20
Price: 40.80 Inc. VAT. (34.00 Exc. VAT at 20%)

PACKING WASHER, OUTER SCROLL

PACKING WASHER, OUTER SCROLL


0710064
In stock
Exploded View No. 20a
Price: 5.70 Inc. VAT. (4.75 Exc. VAT at 20%)

INNER SCROLL ASSY

INNER SCROLL ASSY


28709
In stock
Exploded View No. 21
Price: 88.80 Inc. VAT. (74.00 Exc. VAT at 20%)

CLUTCH OPP PIN LOCKNUT

CLUTCH OPP PIN LOCKNUT


28681
In stock
Exploded View No. 22
Price: 0.72 Inc. VAT. (0.60 Exc. VAT at 20%)

PIN, OUTR SCROLL LOCATNG

PIN, OUTR SCROLL LOCATNG


31057
In stock
Exploded View No. 23
Price: 0.78 Inc. VAT. (0.65 Exc. VAT at 20%)
