GASKETS

Gasket Notes

There is no gasket fitted between the inner and outer magneto casings or between the crankcase halves on Starmaker or Stormer engines.
These joints should be sealed with non-hardening jointing compound such as Wellseal or Hylomar Gold or Blue.

There is also no cylinder head gasket used on un-modified Starmaker or Stormer engines. The head simply torques down on to the top of the liner to form a seal. Clean and lightly oil the mating surfaces before tightening down evenly to 21lb/ft. (28.47Nm)

All our gaskets are made from non asbestos materials

FLOAT CHAMBER WASHER

FLOAT CHAMBER WASHER


622/073
In stock
Price: 3.00 Inc. VAT. (2.50 Exc. VAT at 20%)

GASKET, FLOAT BOWL AMAL Mk2

GASKET, FLOAT BOWL AMAL Mk2


2622/070
In stock
Price: 1.93 Inc. VAT. (1.61 Exc. VAT at 20%)

SPACER, CYLINDER BASE 410

SPACER, CYLINDER BASE 410


0710120
In stock
Price: 18.90 Inc. VAT. (15.75 Exc. VAT at 20%)

GASKET SET - 250 STARMAKER

GASKET SET - 250 STARMAKER


0700000
In stock
Price: 30.24 Inc. VAT. (25.20 Exc. VAT at 20%)

GASKET SET 250 STORMER

GASKET SET 250 STORMER


0700001
In stock
Price: 30.24 Inc. VAT. (25.20 Exc. VAT at 20%)

GASKET SET, STORMER Y5, 370

GASKET SET, STORMER Y5, 370


0700001-2
In stock
Price: 31.44 Inc. VAT. (26.20 Exc. VAT at 20%)

GASKET SET, STORMER 410

GASKET SET, STORMER 410


0700001-3
In stock
Price: 35.03 Inc. VAT. (29.19 Exc. VAT at 20%)

STARMAKER & Y4Mk1, BASE GASKET (0.010

STARMAKER & Y4Mk1, BASE GASKET (0.010" thick)


25088
In stock
Exploded View No. 7
Price: 3.00 Inc. VAT. (2.50 Exc. VAT at 20%)

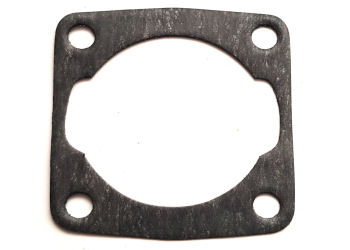

250 CYLINDER BASE GASKET

250 CYLINDER BASE GASKET


31160
In stock
Exploded View No. 7
Price: 5.99 Inc. VAT. (4.99 Exc. VAT at 20%)

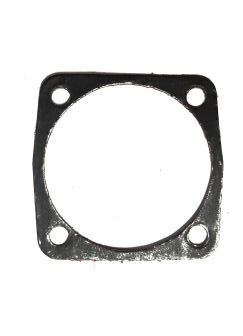

370-410 CYLINDER BASE GASKET

370-410 CYLINDER BASE GASKET


31161
In stock
Exploded View No. 7
Price: 5.99 Inc. VAT. (4.99 Exc. VAT at 20%)

STARMAKER INLET GASKET

STARMAKER INLET GASKET


27848
In stock
Price: 4.08 Inc. VAT. (3.40 Exc. VAT at 20%)

EXHAUST GASKET - 52 x 42.5

EXHAUST GASKET - 52 x 42.5


DD125E-1800-002
In stock
Price: 3.16 Inc. VAT. (2.63 Exc. VAT at 20%)

INLET GASKET FOR 1000 SERIES CARB

INLET GASKET FOR 1000 SERIES CARB


0710043
In stock
Exploded View No. 11
Price: 5.10 Inc. VAT. (4.25 Exc. VAT at 20%)

INLET MANIFOLD GASKET

INLET MANIFOLD GASKET


30654
In stock
Exploded View No. 11
Price: 4.50 Inc. VAT. (3.75 Exc. VAT at 20%)

LARGE CLUTCH CASING GASKET

LARGE CLUTCH CASING GASKET


40611
In stock
Exploded View No. 3
Price: 5.82 Inc. VAT. (4.85 Exc. VAT at 20%)

INNER CHAIN CASE GASKET

INNER CHAIN CASE GASKET


E8401
In stock
Exploded View No. 4
Price: 3.74 Inc. VAT. (3.12 Exc. VAT at 20%)

MAGNETO COVER GASKET

MAGNETO COVER GASKET


25649
In stock
Price: 2.84 Inc. VAT. (2.37 Exc. VAT at 20%)

GEARBOX END COVER GASKET

GEARBOX END COVER GASKET


C11905
In stock
Exploded View No. 3
Price: 4.10 Inc. VAT. (3.42 Exc. VAT at 20%)

CLUTCH INSPECTION COVER. GASKET

CLUTCH INSPECTION COVER. GASKET


27697
In stock
Exploded View No. 24
Price: 2.68 Inc. VAT. (2.23 Exc. VAT at 20%)

G/BOX TO CRANKCASE GASKET

G/BOX TO CRANKCASE GASKET


25955
In stock
Exploded View No. 4
Price: 3.94 Inc. VAT. (3.28 Exc. VAT at 20%)
